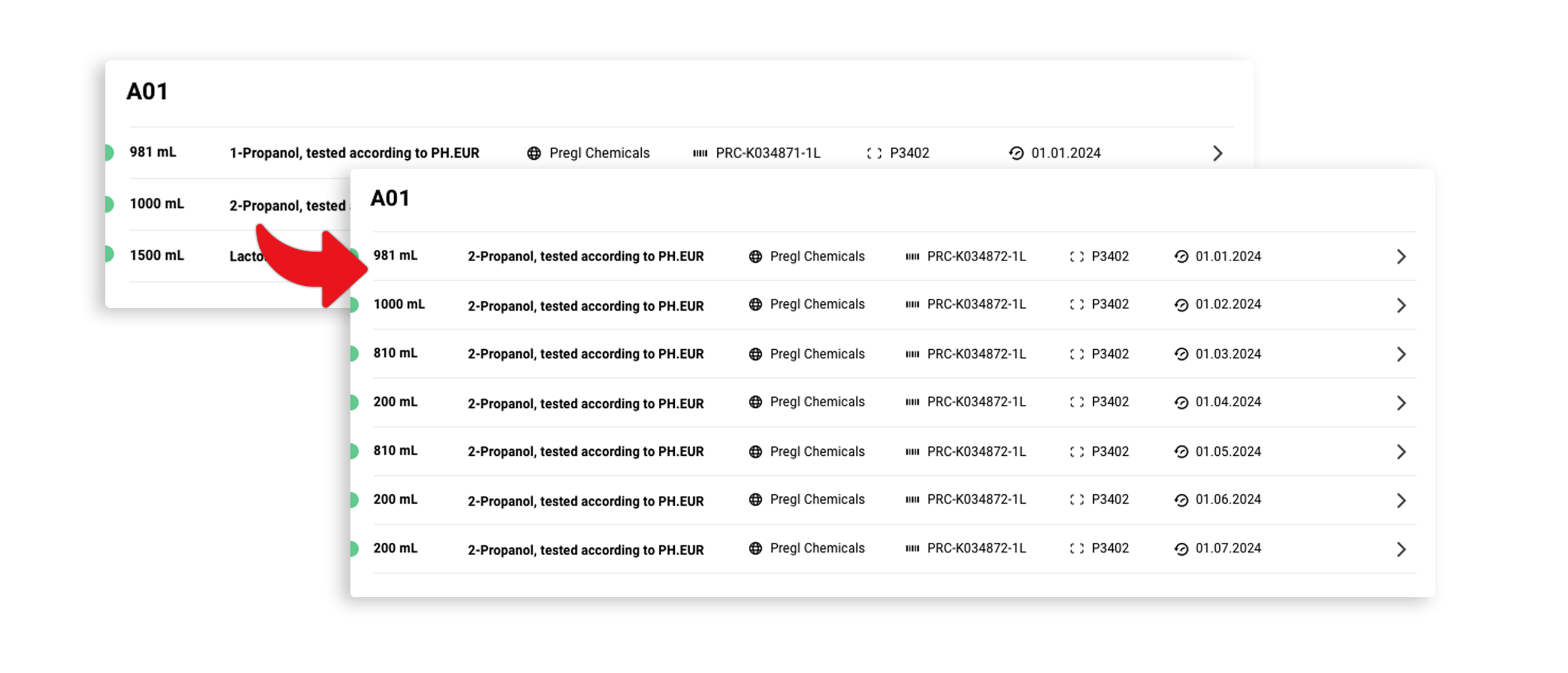

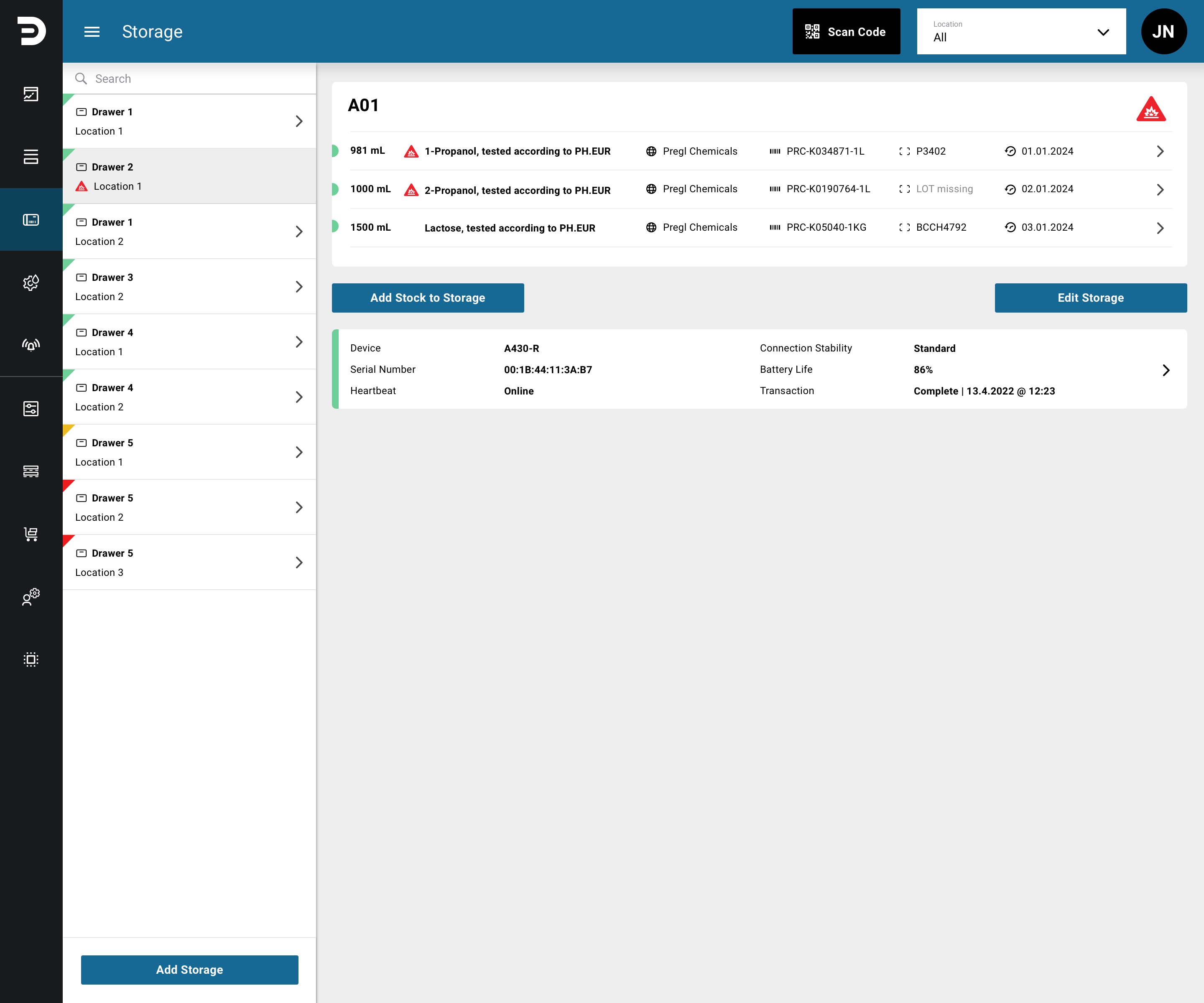

The storage details screen displays all the items that have been added to the designated storage location. By clicking on a specific chemical or labware item, users can view all the identical items present at that particular storage location, along with their respective quantities within the storage.

From the storage details screen, users can click further to access the dedicated chemical or labware details screen, located within the Stock section. This provides users with an opportunity to obtain even more comprehensive information about the specific item.

Hazardous combination of chemicals

A mixture of GHSs classified as hazardous

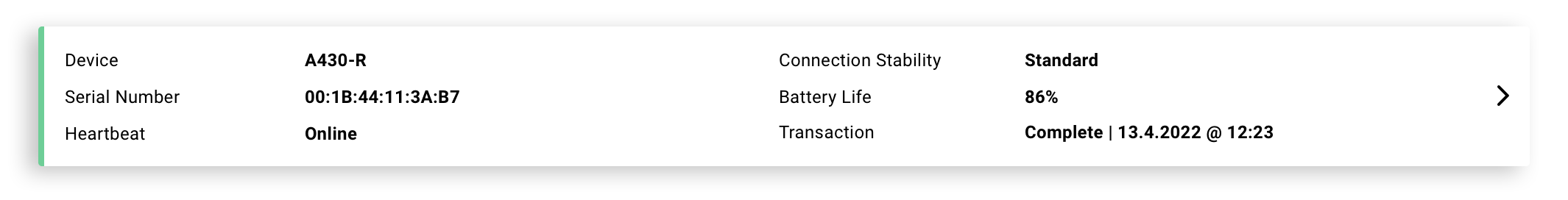

Pregl Digital Screen IoT Data Card

Device: The model of the Pregl Digital Screen

Serial Number: The serial number (MAC address) of the Pregl Digital Screen

Heartbeat: Device condition, verified through a regular "heartbeat" signal sent every 30 seconds. There are three possible statuses that the device can indicate:

• Green – The device is operating within the intended parameters.
• Red - The device did not send the expected "heartbeat", the device is not responding, is turned off or is malfunctioning.
• Grey - The device is not registered in the system and the "heartbeat" is not checked
• •

Connection Stability: Indication of connection stability. Four distinct connection statuses are available, providing valuable insights into the network condition:

• Perfect - the connection works optimally.
• Standard - the connection works, without critical errors.
• Bad - signal is in critical range, device will work but will affect speed, data errors and power consumption.
• No network - the heart rate of the device is offline.

Battery Life: The current battery status. Lifetime is affected by signal strength, temperature, communication intervals and refresh cycles.

Transaction: Under the Transactions section, you can see the last transaction made with this device and their status and execution time. Four statuses are possible:

• Complete - All transactions are confirmed.
• Refreshing - The last transaction is being processed, it is refreshing, this status is in real time with a time limit of 5 minutes.
• Error - The device was not reachable and/or the last transaction was not successful.
• Registered - No transactions were made with this device.
