Pregl Digital Smart Touch is an interactive display in a physical lab space that enables the use of the Pregl digital dashboard on the location itself. Like other IoT devices (routers, scale modules, and Pregl digital screens), Smart Touch is also manageable through the Pregl Digital dashboard/Cloud management.
|
|

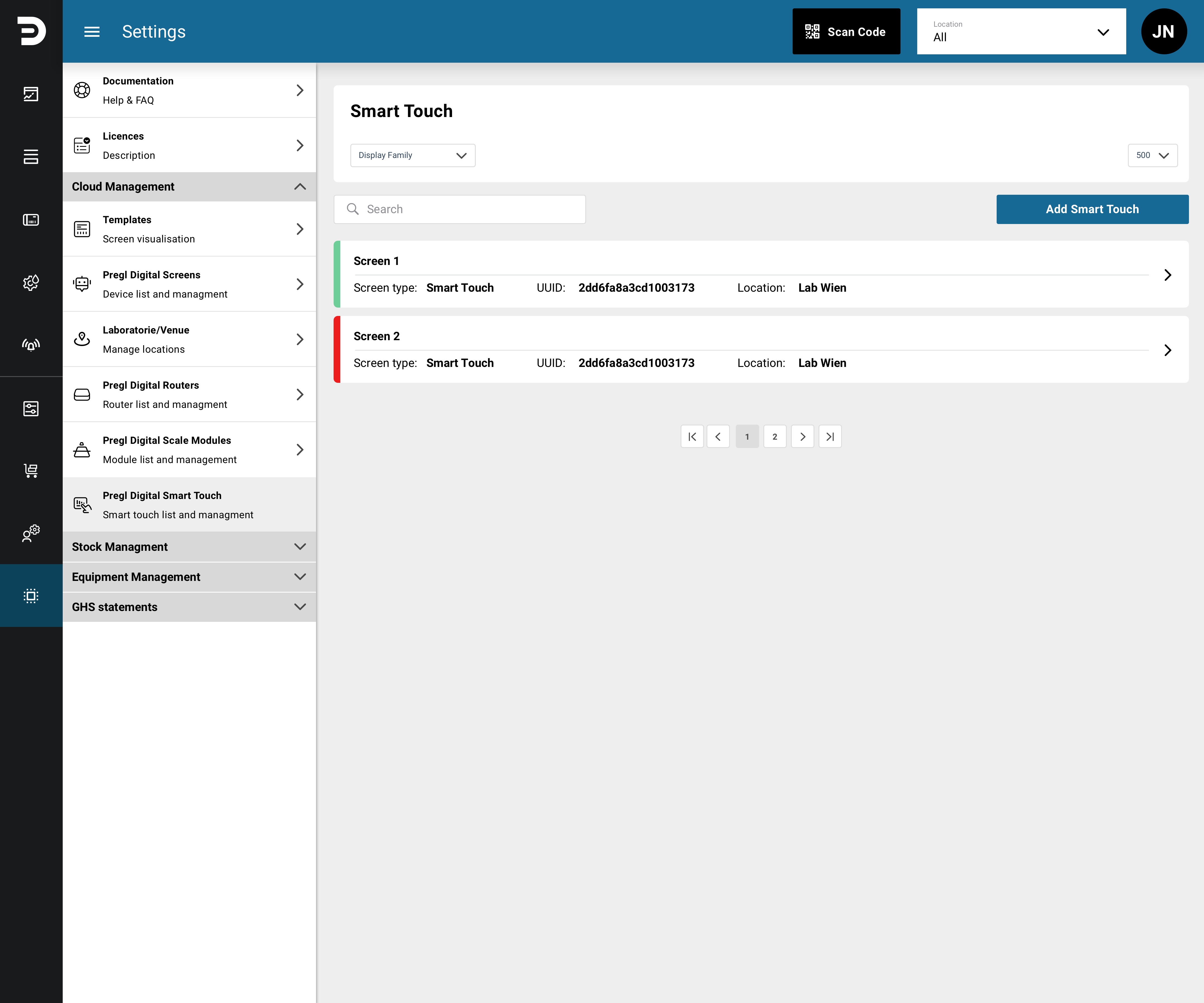

Adding a new Smart Touch
Adding a new Smart Touch is similar to the process of adding a router. To start, click on the "Add Smart You will be taken to a "Wizard" that guides you through the process of registering a new Smart Touch.

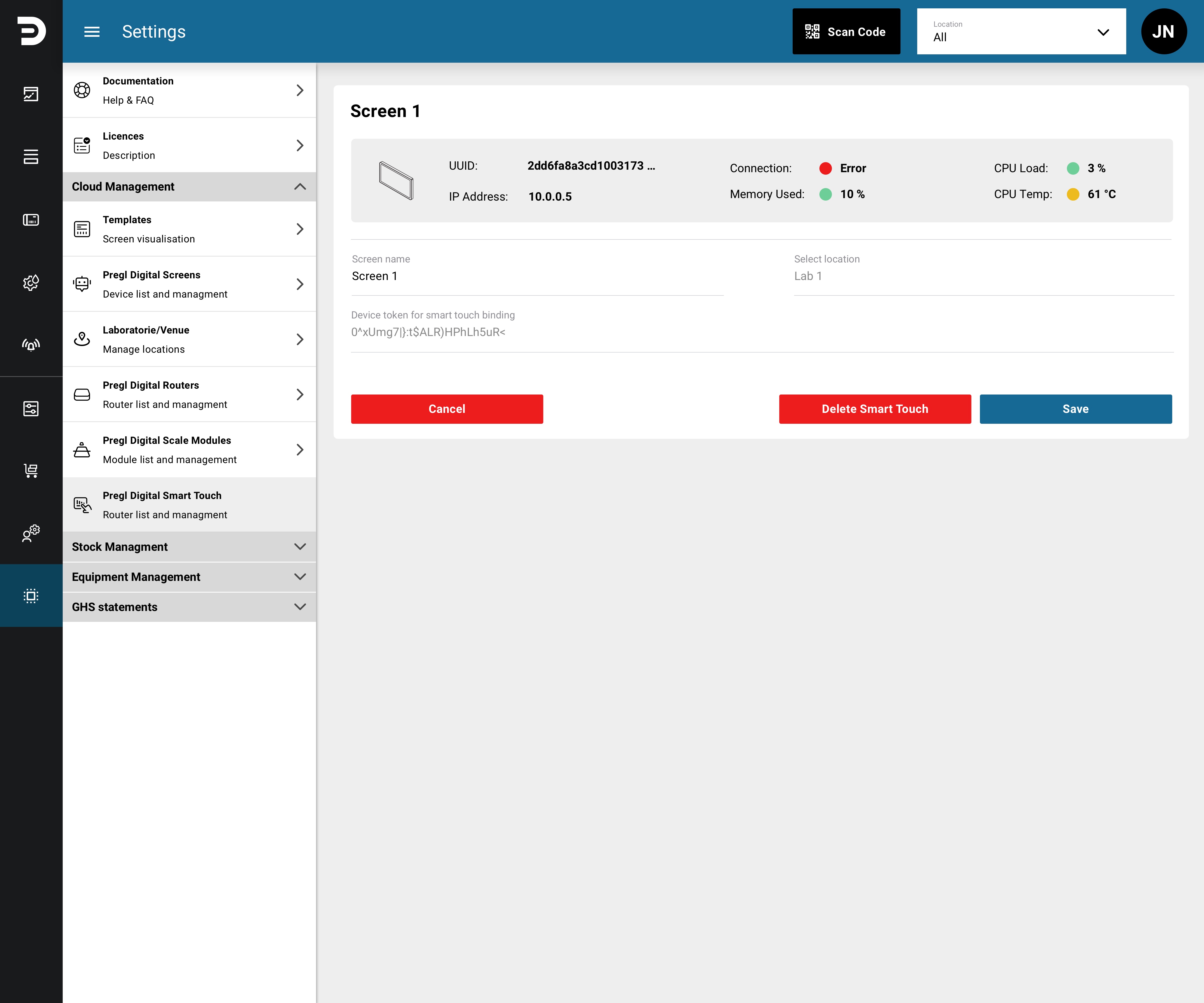

Smart Touch details
Pregl Digital Dashboard enables users to monitor data an make any needed updates. On the Smart Touch details screen, which opens with a click on one of the cards on the Smart touch list, users can monitor following data:
- UUID - Smart Touch serial number, also visible in the network.
- IP Adress - current IP assigned to the Smart Touch.
- Connection - connection status of the Smart Touch, displayed through a color-coded indicator. When the router is functioning correctly and is reachable, the status indicator will be green. On the other hand, if the router is unreachable, the status indicator will turn red.
- Memory used - Current memory usage, yellow area starts at 75%, red area starts at 90%, red area means the system will slow down due to load. If the situation does not stabilize within a few hours contact support.
- CPU Load - Current load, yellow area starts at 75%, red area at 90%, red area means the system will slow down due to load. If the situation does not stabilise within a few hours contact support.
- CPU Temp - Current temperature, yellow area starts at 70°C, red area starts at 80°C, red area means the system will slow down due to overheating. If the situation does not stabilise within a few hours check the fan operation or lower the room temperature (see router documentation).
- Screen name - Registered Smart Touch name.
- Device location - The three-way bound location of the Smart Touch.
- Device token for router binding - A unique identifier that is used to bind a Smart Touch to a user account. This string of characters serves as a security measure, ensuring that only authorized users are able to access and manage the router.
|
|
